- Country of Manufacture: CHINA; Material: Metal; Net Weight: 1043g

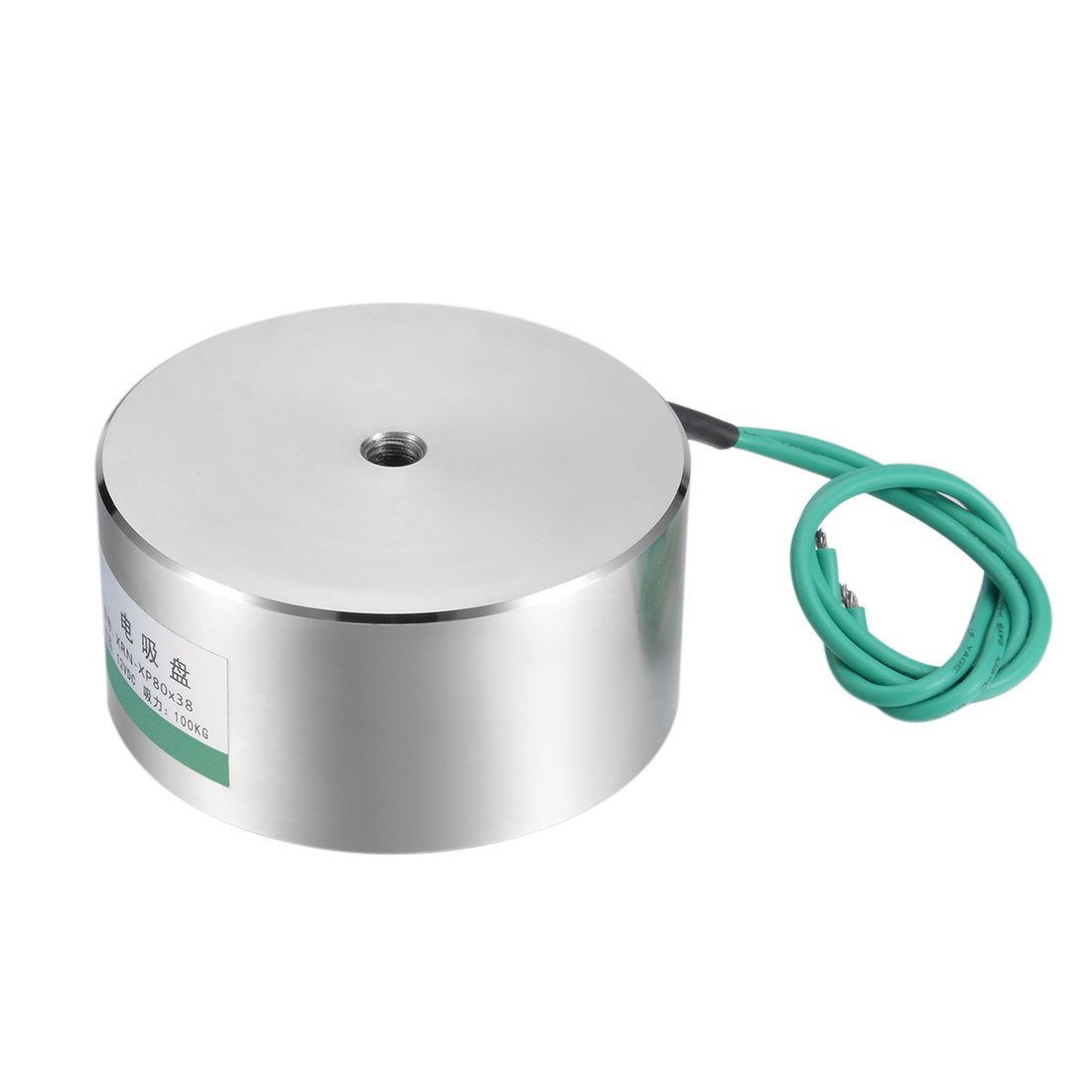

- Package Content: 1 x Sucked Type Electromagnet; Model: XRN-XP80x38; Main Color: Silver Tone
- Suction Surface Diameter: 34mm; Thread Size: M8; Voltage: DC12V
- Peak Force :1000N; Holding Force :750N; Duty-cycle (ED%) : 50%; Electric time:Less than 7 minutes ; Size: 80 x 38mm/3.15" x 1.5"(D*H)

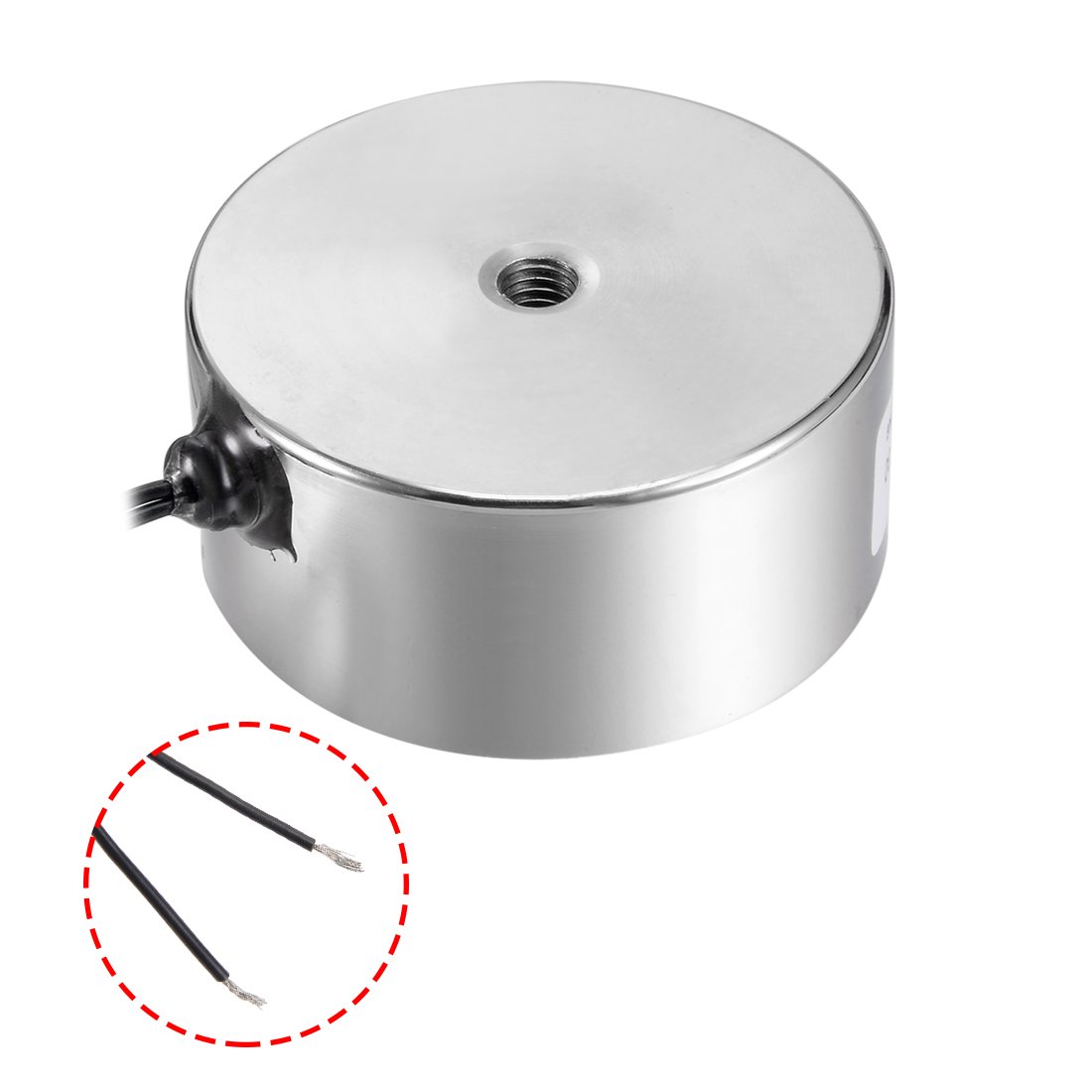

- Cable Length: 220mm/8.66"; Middle Metal Dia.: 34mm/1.34"
Feature:

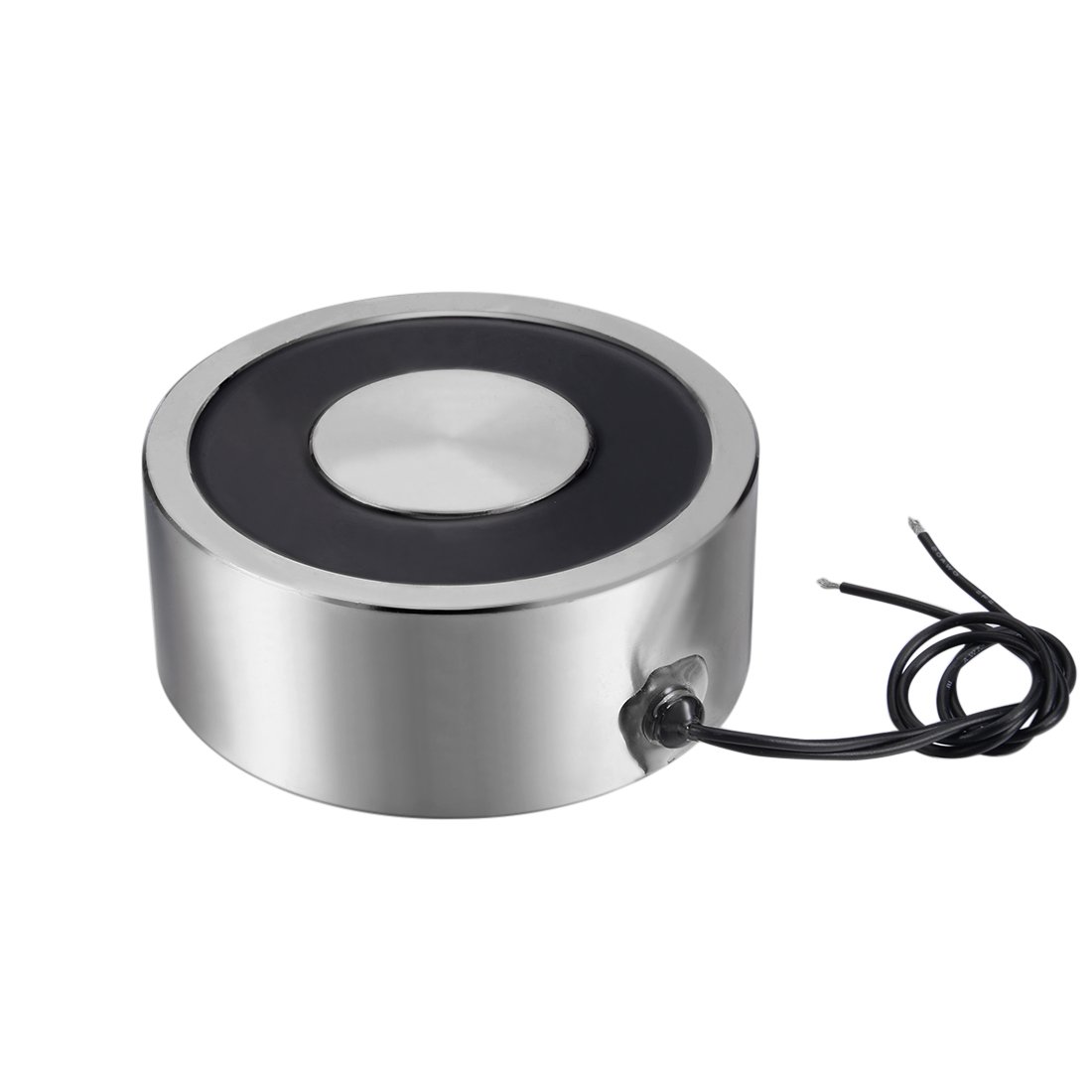

Electric lifting magnet
Powerful and compact
Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Specification:
Material: Pure Iron
Input Voltage: 12V DC
Peak Force :1000N;
Holding Force :750N;
Duty-cycle (ED%) : 50%;
Electric time:Less than 7 minutes ;
Suction Surface Diameter :Φ34
Thread Size :M8

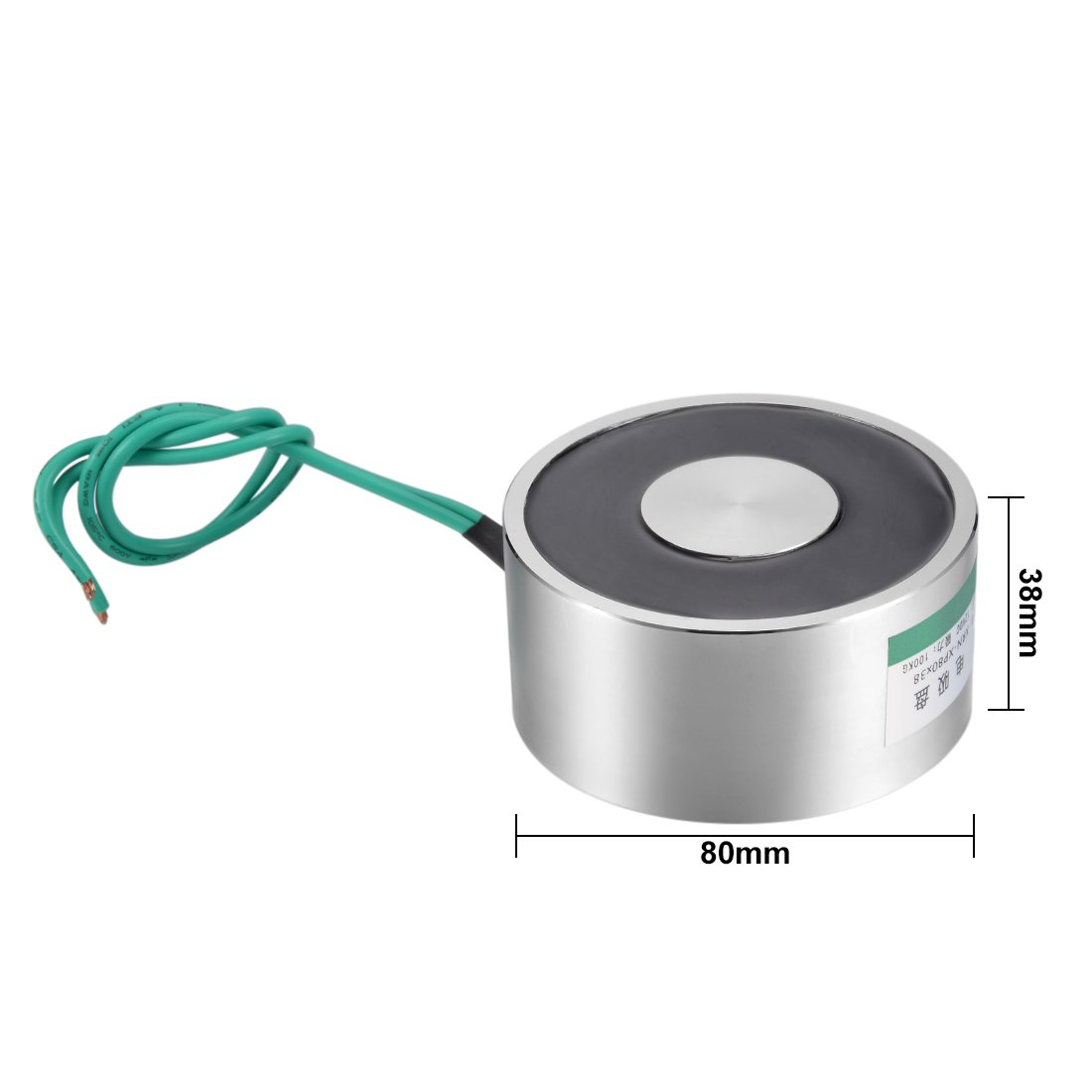

Overall Size : 80 x 38mm/3.15inch x 1.5inch(D*H)
Lead Length : 220mm/8.66inch
Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet
Package Includes:
1 x Holding Electromagnet
