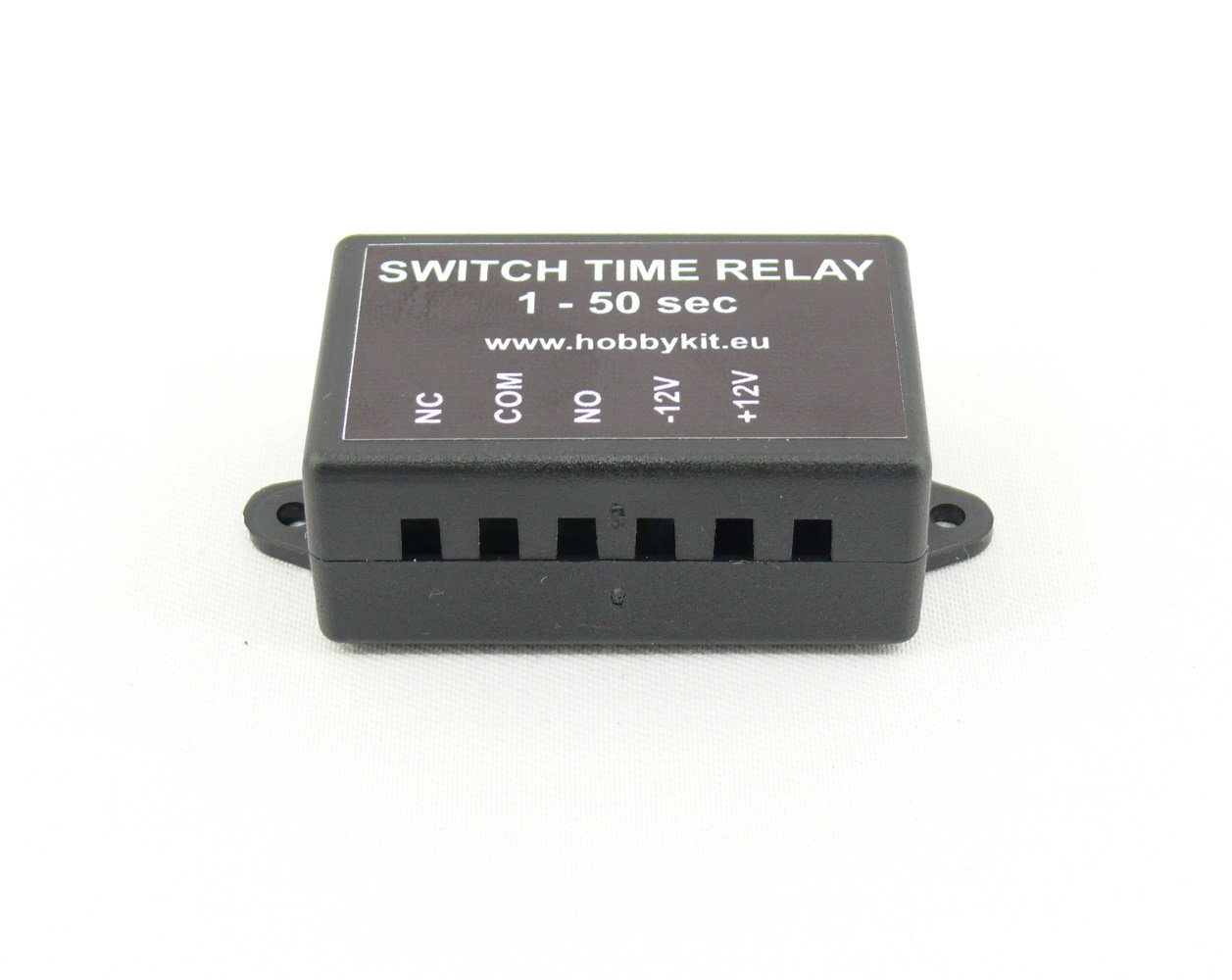

- Timer switch time relay 1 to 50 sec delay on switch 12v
- Power supply - 10 to 14 v dc.
- Relay: 15?/125v dc , 15a/24v dc or ac, 10a/250v ac.
- Time delay between 1 and 50 seconds

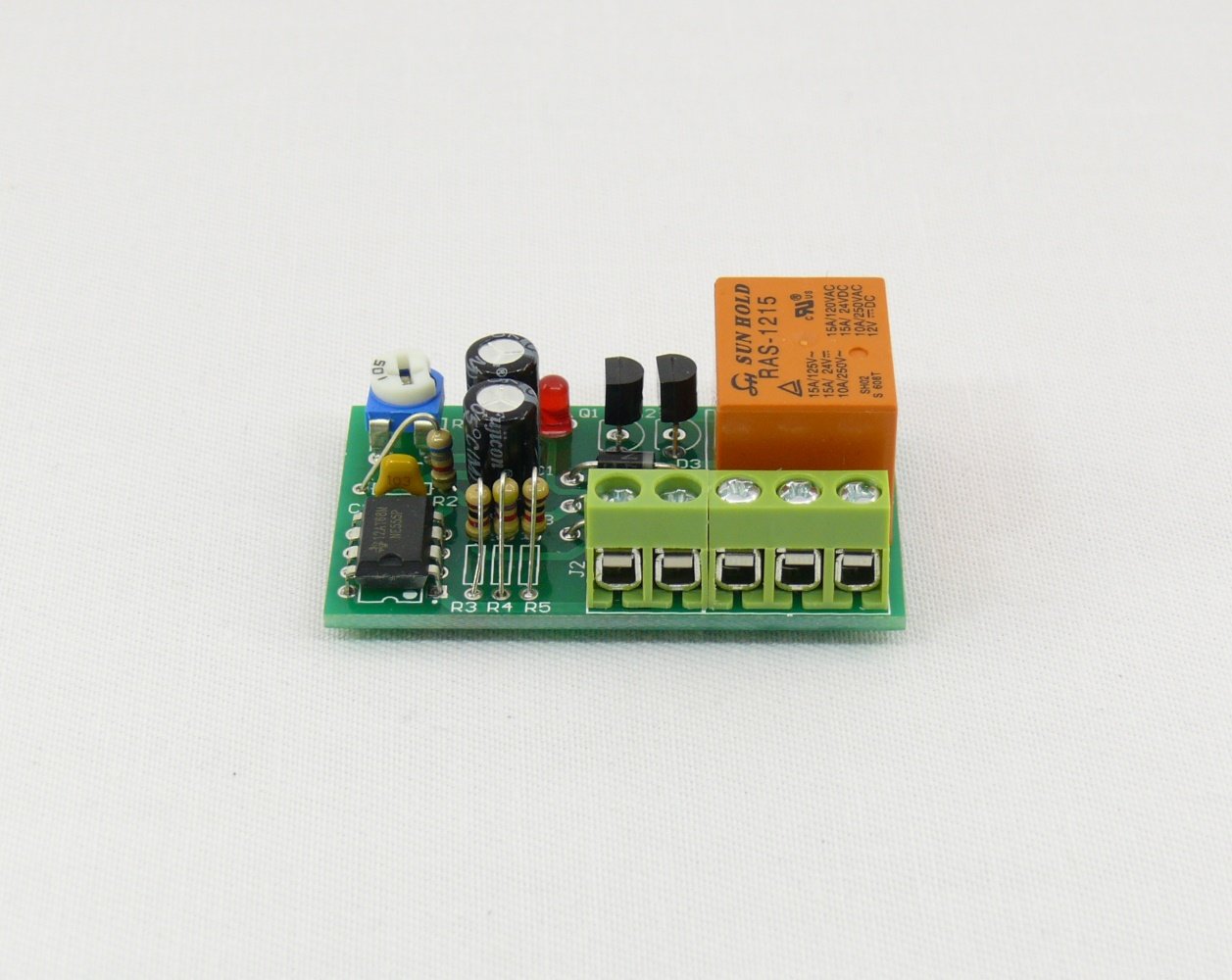

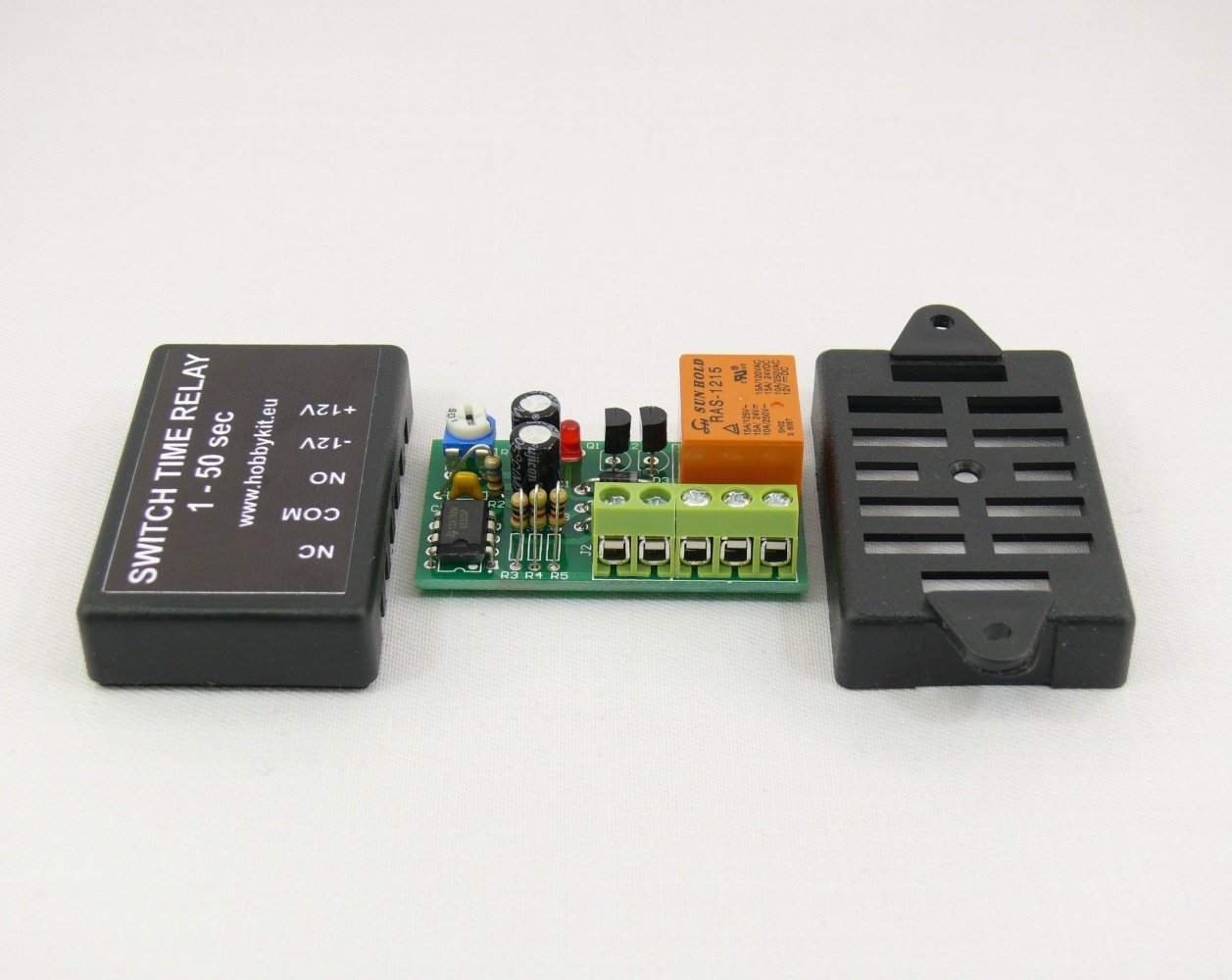

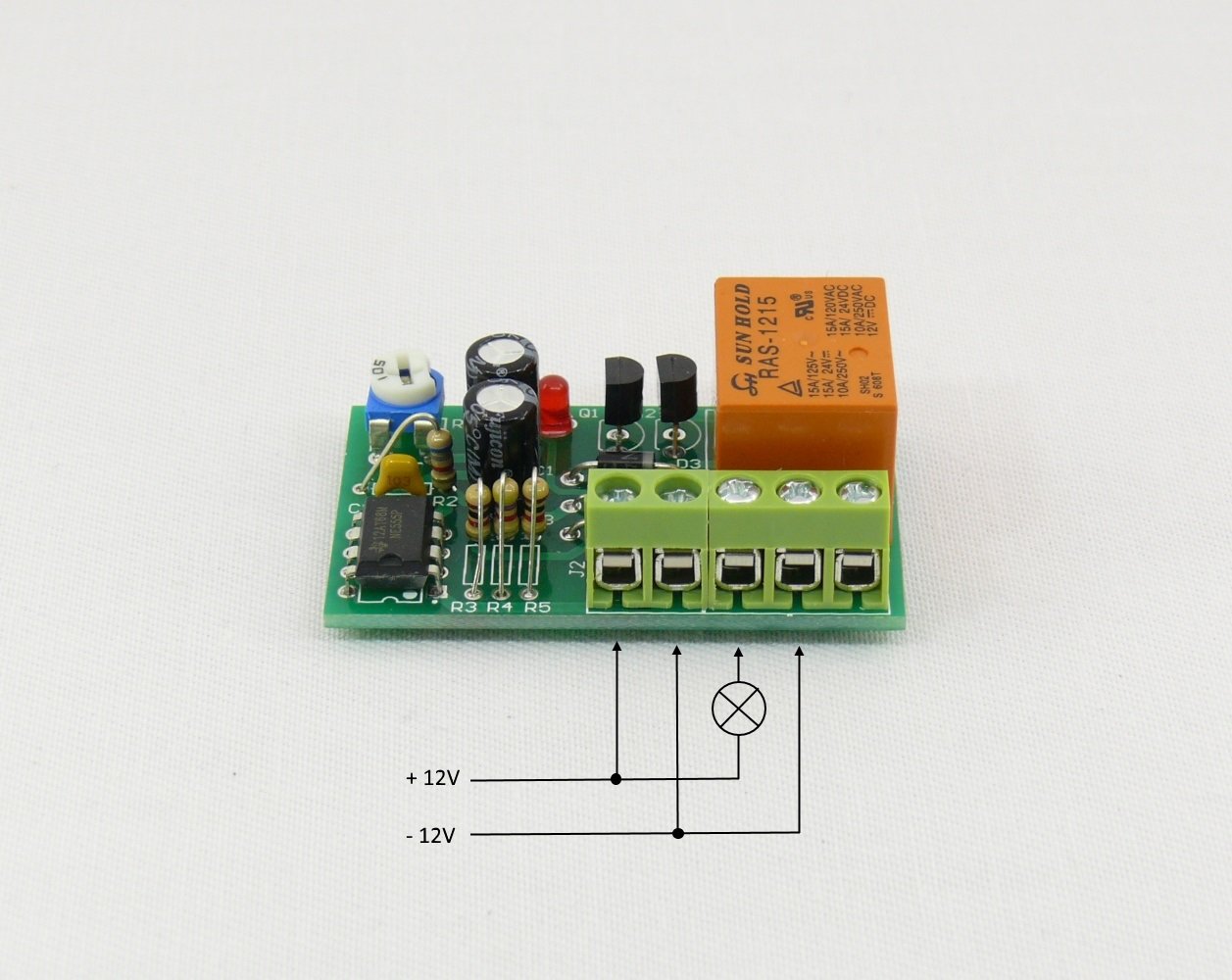

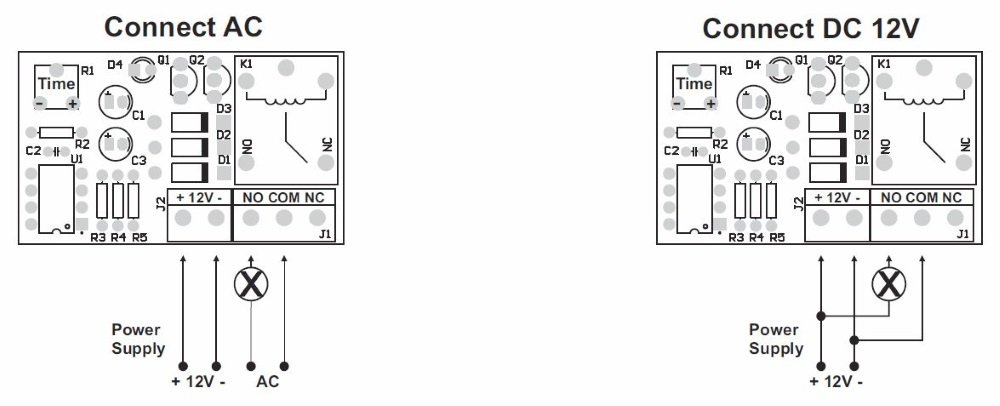

How it works : at the point of switch power on , the timer delay starts . Upon expiry of the time , relay turns on and remain in this position until power is off. At the point of switch off, the timer resets, ready for the next operation led indication for activated relay. Time delay between and 50 seconds fully assembled pvc box included dimensions : pcb only 49 x 9 mm. box 55 x 35x 0 mm. The output, is relay with : normally open contact no. normally closed contact nc. Power supply 0 to 4 v dc. Relay: 5?/5v dc, 5a/4v dc or ac, 0a/50v ac.
